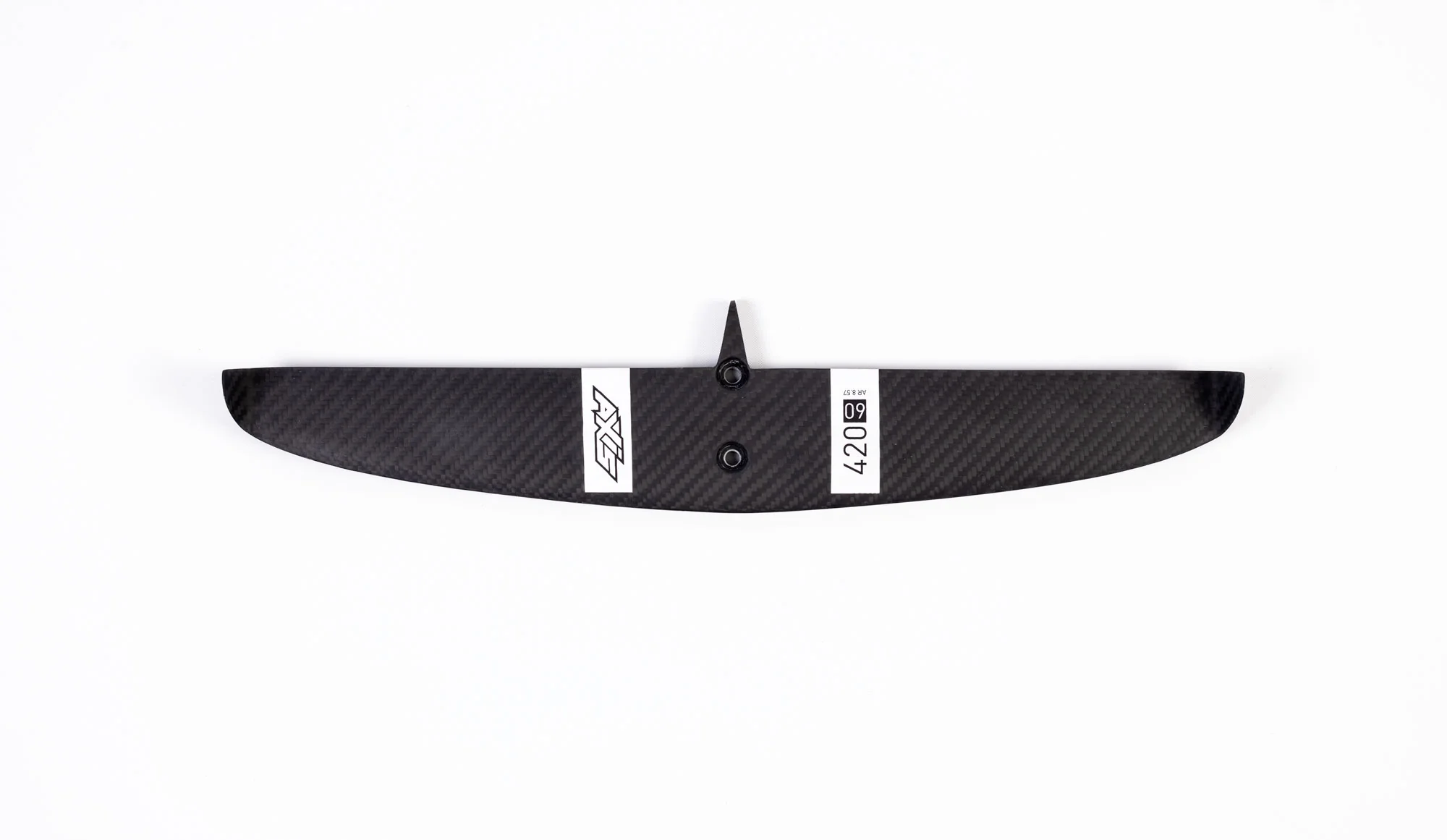

Imagine a shorter version of the AXIS 460 rear wing, with winglets.

That's exactly what the 420 carbon rear wing is.

Our fastest rear wing to date, at 420mm wingspan, 60mm chord, and 8.7 Aspect Ratio. FAST. And with the winglets it provides good turning and carving control.

If you are a performance Prone, SUP, Wing or Downwind foiler, looking for the fastest setup, then the 420 is just your wing.

AXIS cover is not included in this price  (limited supply  first come first serve basis)

WINGSPAN: 420 mm / 16.54 in

CHORD: 60 mm / 2.36 in

ASPECT RATIO: 8.57

ACTUAL AREA : 212.63 cm² / 32.96 IN²

PROJECTED AREA: 205.76 cm² / 31.89 IN²

VOLUME: 76.95 cm³ / 4.70 IN³

Assembly

What screws to mount wing to the fuselage:



Rear Wing	Front Screw	Rear Screw
500mm x 90mm	M6 x 25mm	M6 x 25mm
440mm x 90mm	M6 x 25mm	M6 x 25mm
400mm x 90mm	M6 x 25mm	M6 x 25mm
460mm x 60mm	M6 x 22mm	M6 x 22mm
400mm x 60mm	M6 x 22mm	M6 x 22mm
420mm x 60mm	M6 x 22mm	M6 x 22mm
380mm x 60mm	M6 x 22mm	M6 x 22mm
390mm x 80mm	M6 x 25mm	M6 x 25mm
370mm x 80mm	M6 x 25mm	M6 x 25mm
340mm x 80mm	M6 x 25mm	M6 x 25mm
500mm x 90mm	M6 x 25mm	M6 x 25mm
