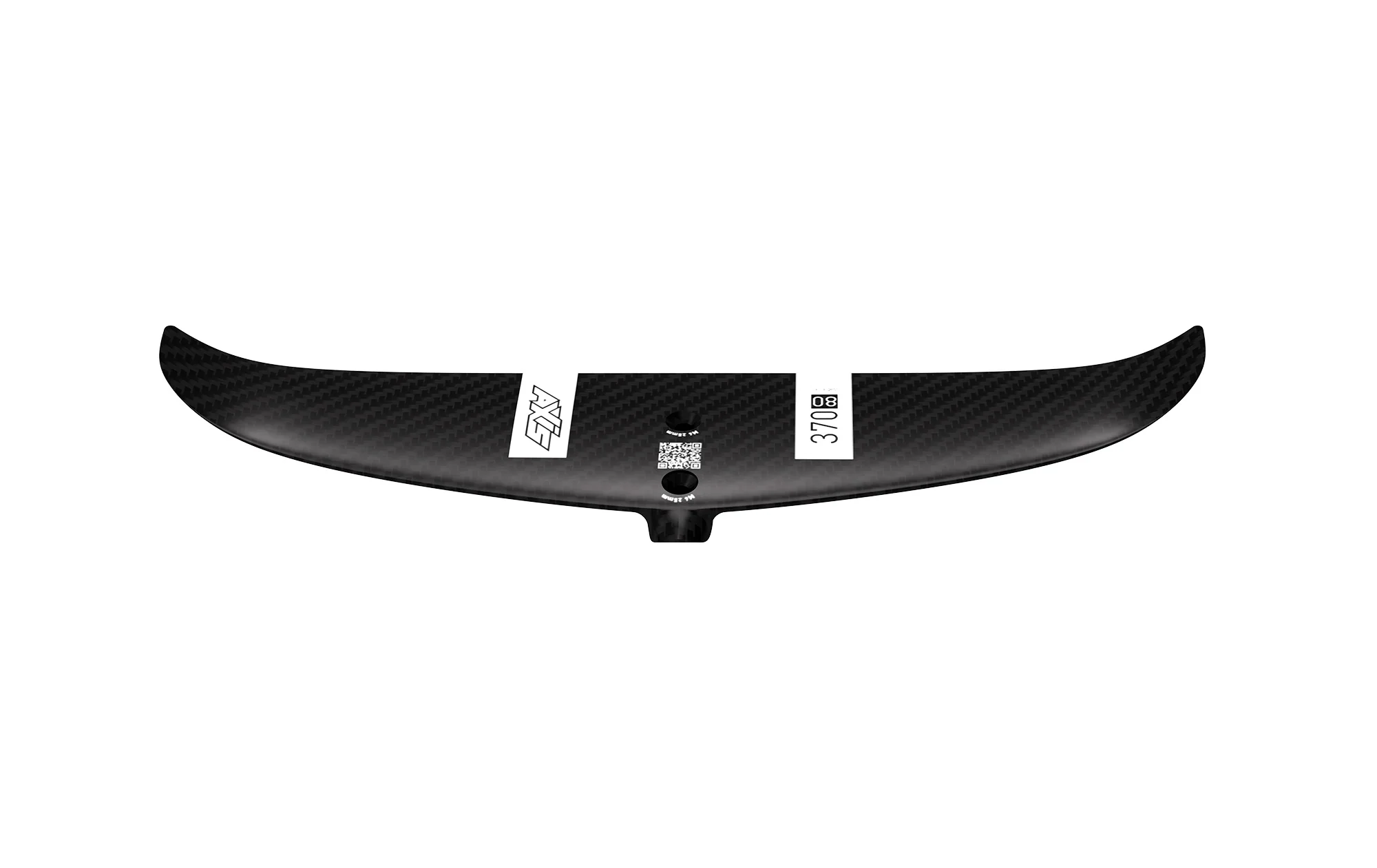

The AXIS 370 Carbon Rear Wing is the carving specialist. Even looser than the 400 rear wing, it's one of the most turny and performance oriented rear wing on our collection.

A must have with the 750, 680 and 660 front wings, but also works miracles with the bigger wings, making the ride more playful and high performing. And when combined with the ULTRA Short Red fuselage then your ride gets looser than ever!

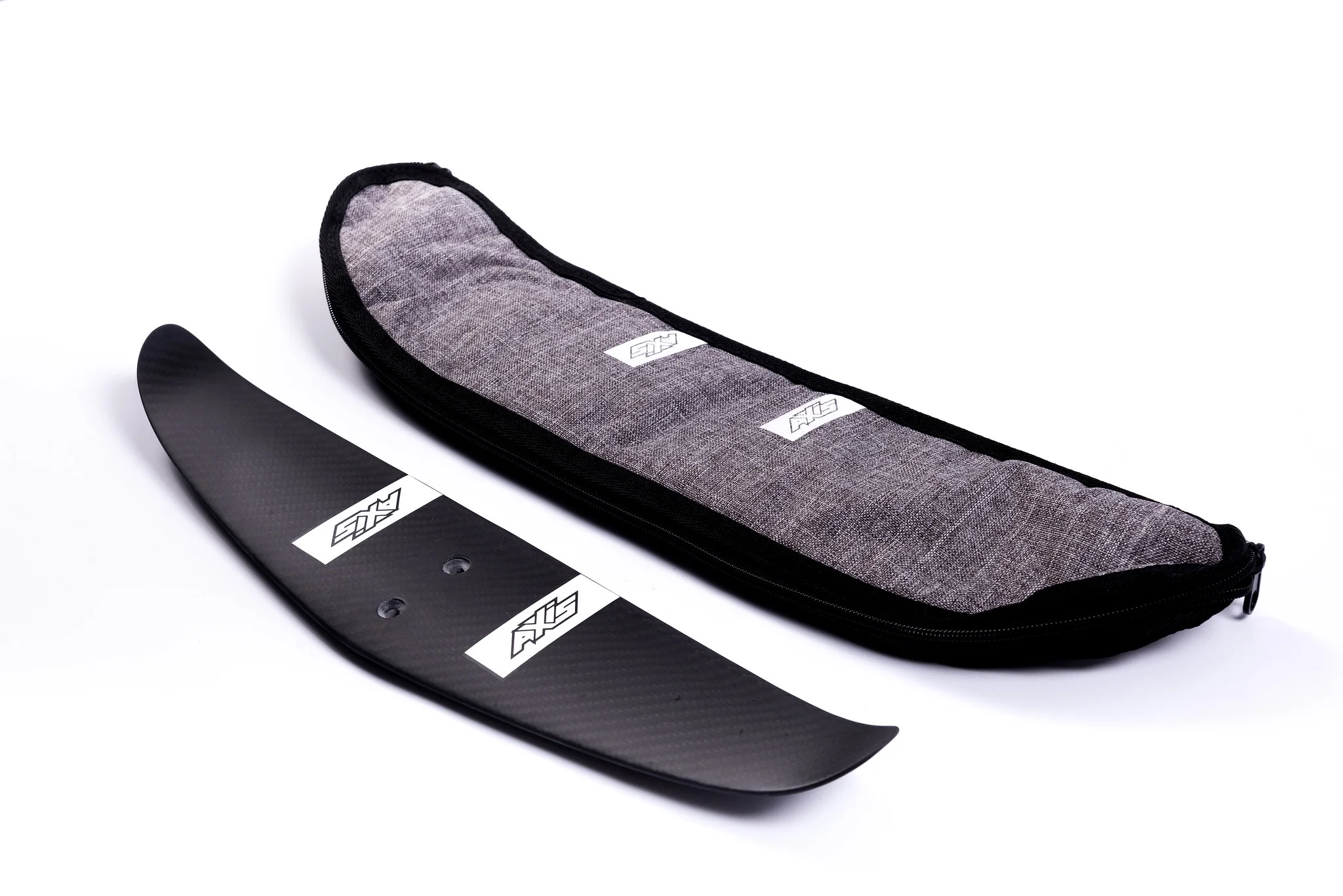

When you purchase the AXIS 370 carbon rear wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.

WINGSPAN: 370 mm / 14.57 in

CHORD: 90 mm / 3.15 in

ASPECT RATIO: 6.01

ACTUAL AREA : 239.54 cm² / 37.13 IN²

PROJECTED AREA: 227.61 cm² / 35.28 IN²

VOLUME: 123.28 cm³ / 7.52 IN³

Assembly

What screws to mount wing to the fuselage:

Rear Wing	Front Screw	Rear Screw
500mm x 90mm	M6 x 25mm	M6 x 25mm
440mm x 90mm	M6 x 25mm	M6 x 25mm
400mm x 90mm	M6 x 25mm	M6 x 25mm
460mm x 60mm	M6 x 22mm	M6 x 22mm
400mm x 60mm	M6 x 22mm	M6 x 22mm
420mm x 60mm	M6 x 22mm	M6 x 22mm
380mm x 60mm	M6 x 22mm	M6 x 22mm
390mm x 80mm	M6 x 25mm	M6 x 25mm
370mm x 80mm	M6 x 25mm	M6 x 25mm
340mm x 80mm	M6 x 25mm	M6 x 25mm
500mm x 90mm	M6 x 25mm	M6 x 25mm
