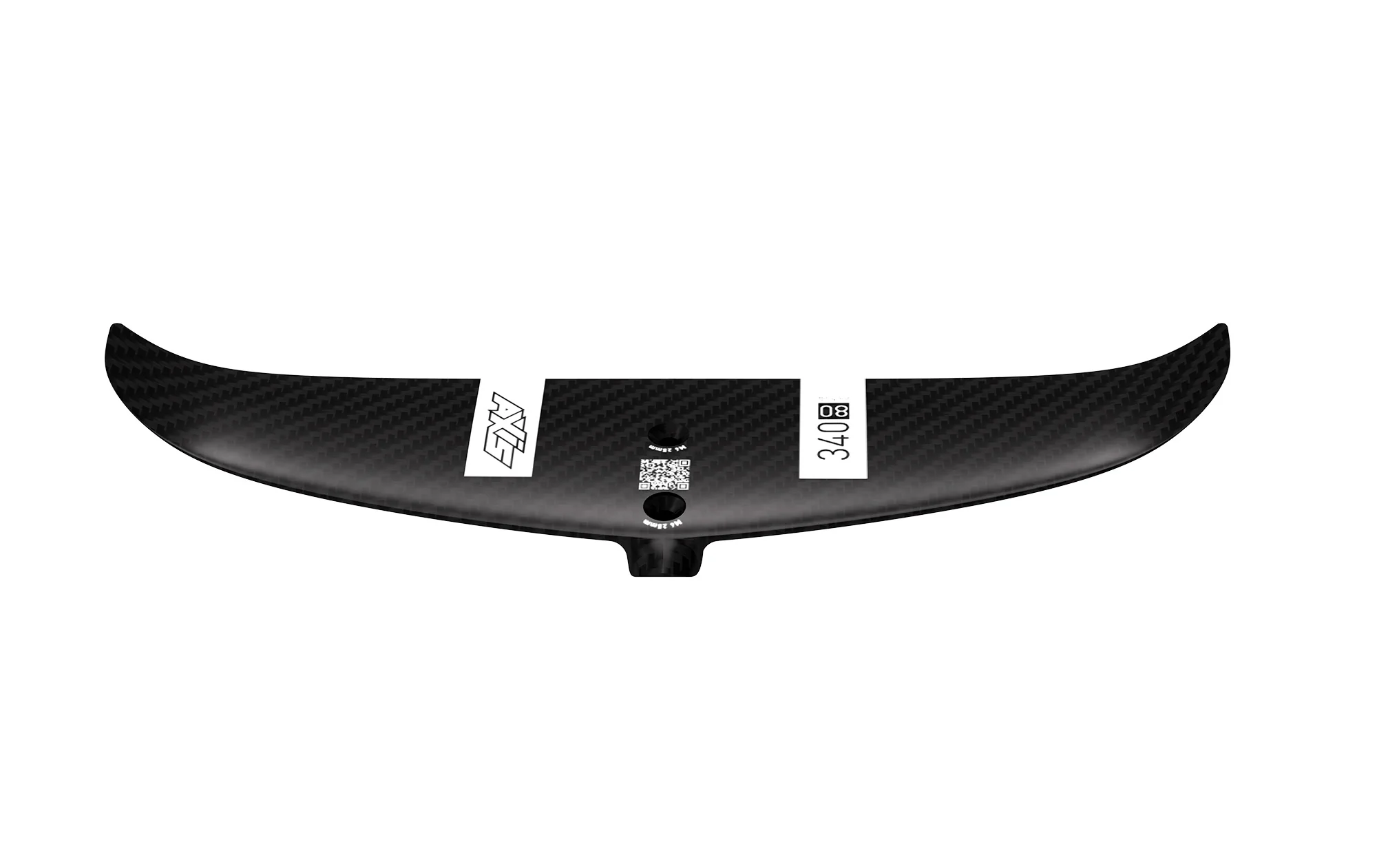

The AXIS 340 Carbon Rear Wing is the smallest rear wing we make. Super loose, designed mainly for the 2020 600, and 545 kite wings, but also works well with the 680, 660 surf wings (for a super loose ride)

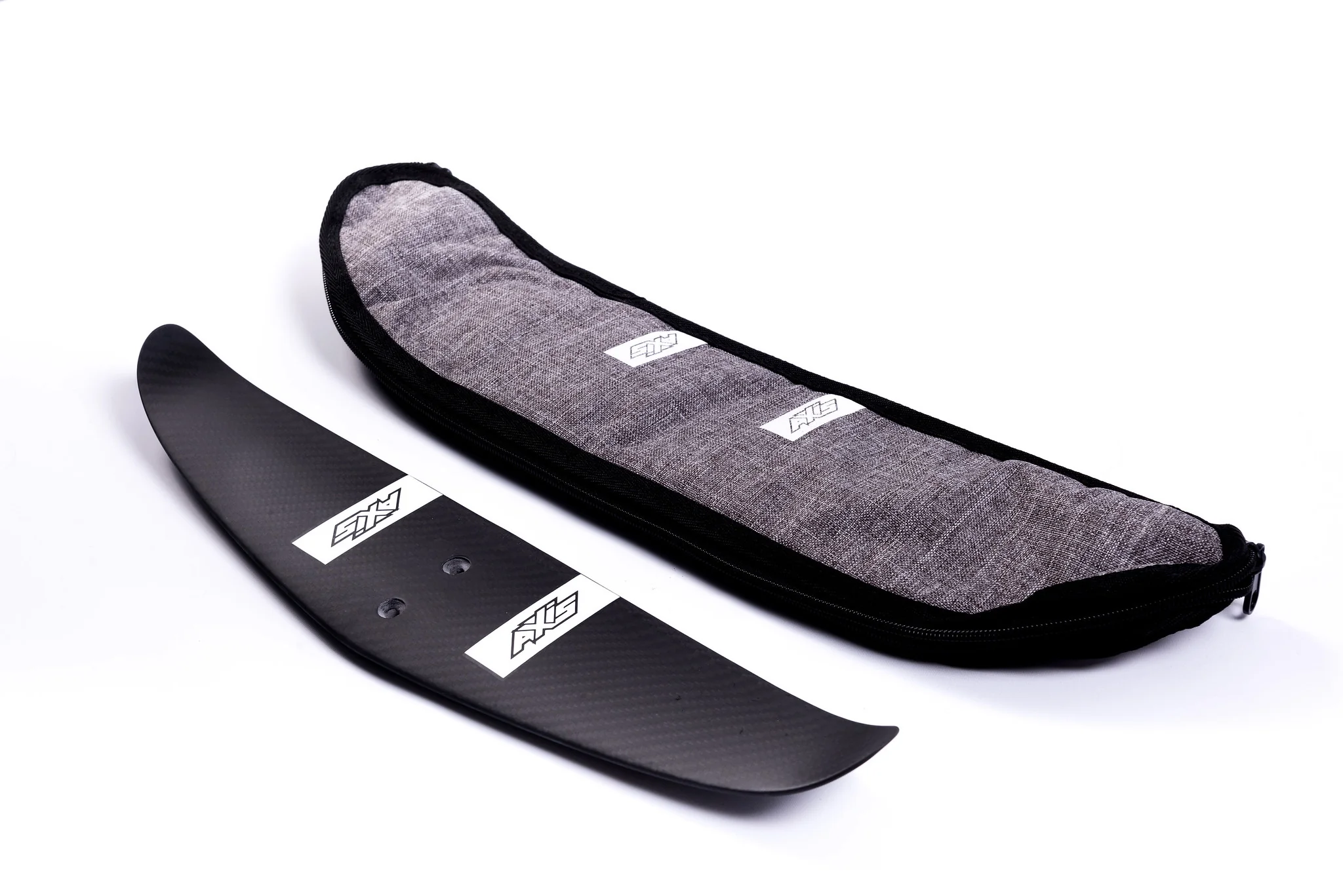

When you purchase the AXIS 340 carbon rear wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.

WINGSPAN: 340 mm / 13.39 in

CHORD: 80 mm / 3.15 in

ASPECT RATIO: 5.53

ACTUAL AREA : 221.01 cm² / 34.26 IN²

PROJECTED AREA: 209.13 cm² / 32.42 IN²

VOLUME: 113.21 cm³ / 5.53 IN³

Assembly

What screws to mount wing to the fuselage:

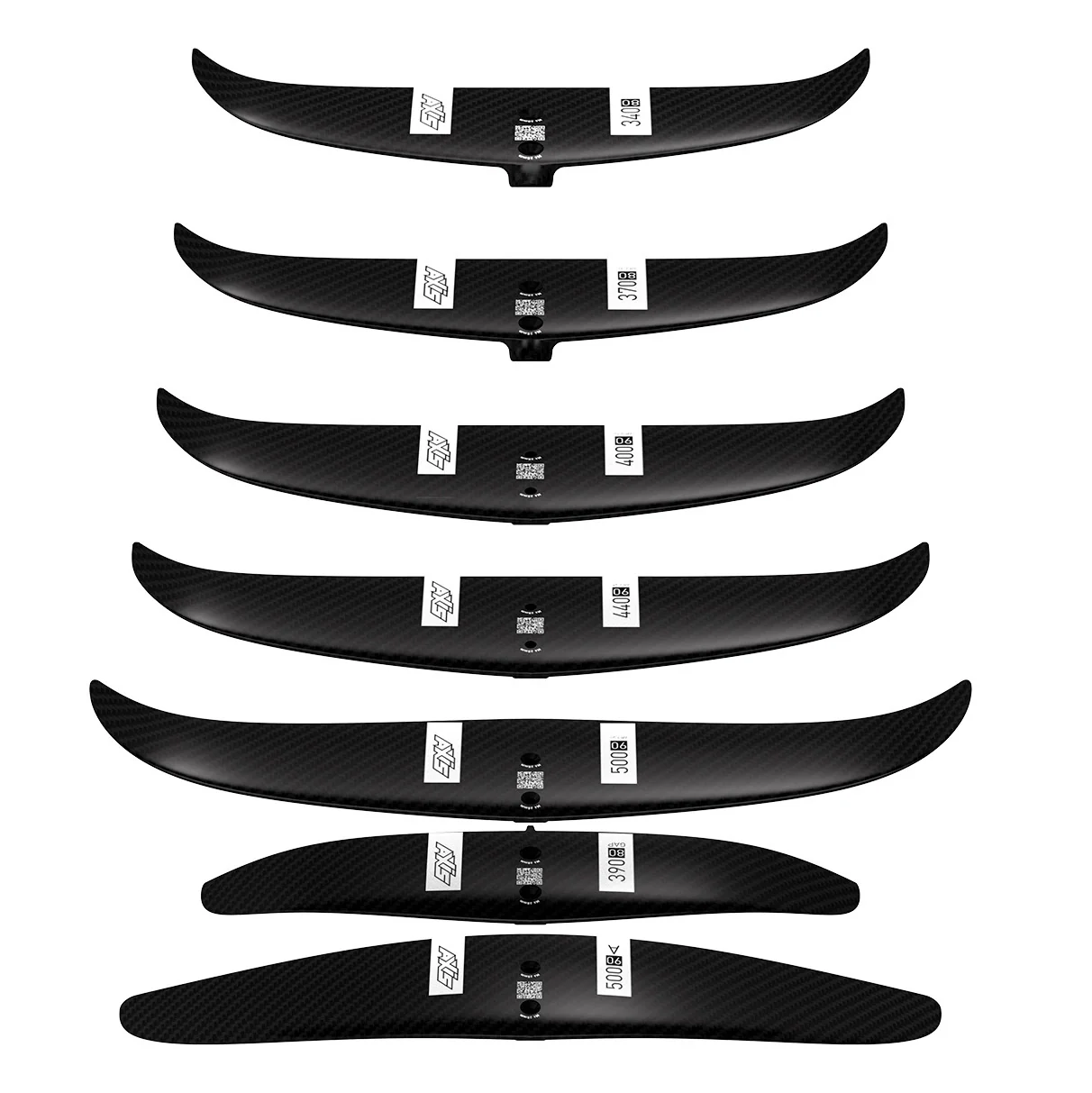

Rear Wing	Front Screw	Rear Screw
500mm x 90mm	M6 x 25mm	M6 x 25mm
440mm x 90mm	M6 x 25mm	M6 x 25mm
400mm x 90mm	M6 x 25mm	M6 x 25mm
460mm x 60mm	M6 x 22mm	M6 x 22mm
400mm x 60mm	M6 x 22mm	M6 x 22mm
420mm x 60mm	M6 x 22mm	M6 x 22mm
380mm x 60mm	M6 x 22mm	M6 x 22mm
390mm x 80mm	M6 x 25mm	M6 x 25mm
370mm x 80mm	M6 x 25mm	M6 x 25mm
340mm x 80mm	M6 x 25mm	M6 x 25mm
500mm x 90mm	M6 x 25mm	M6 x 25mm
