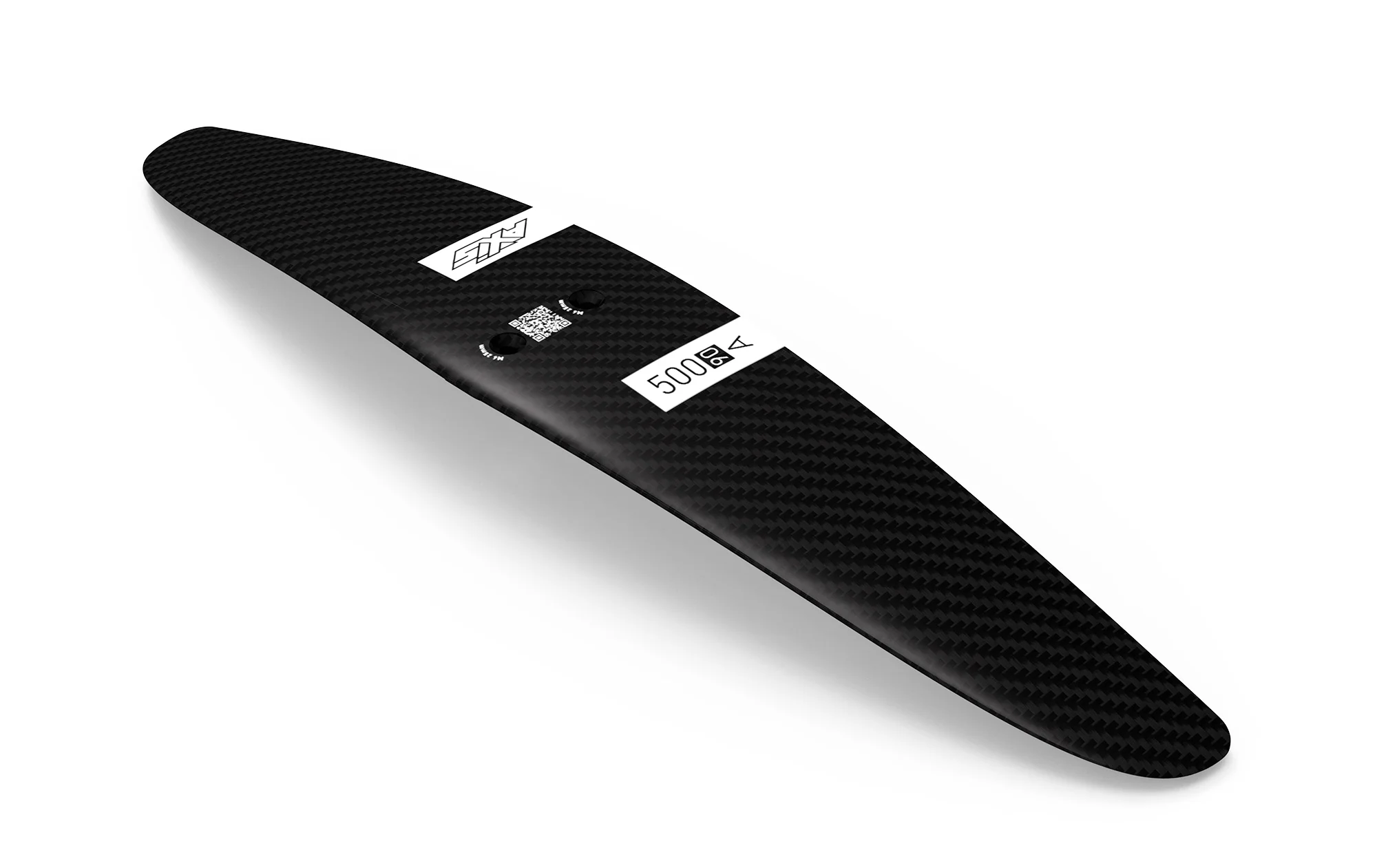

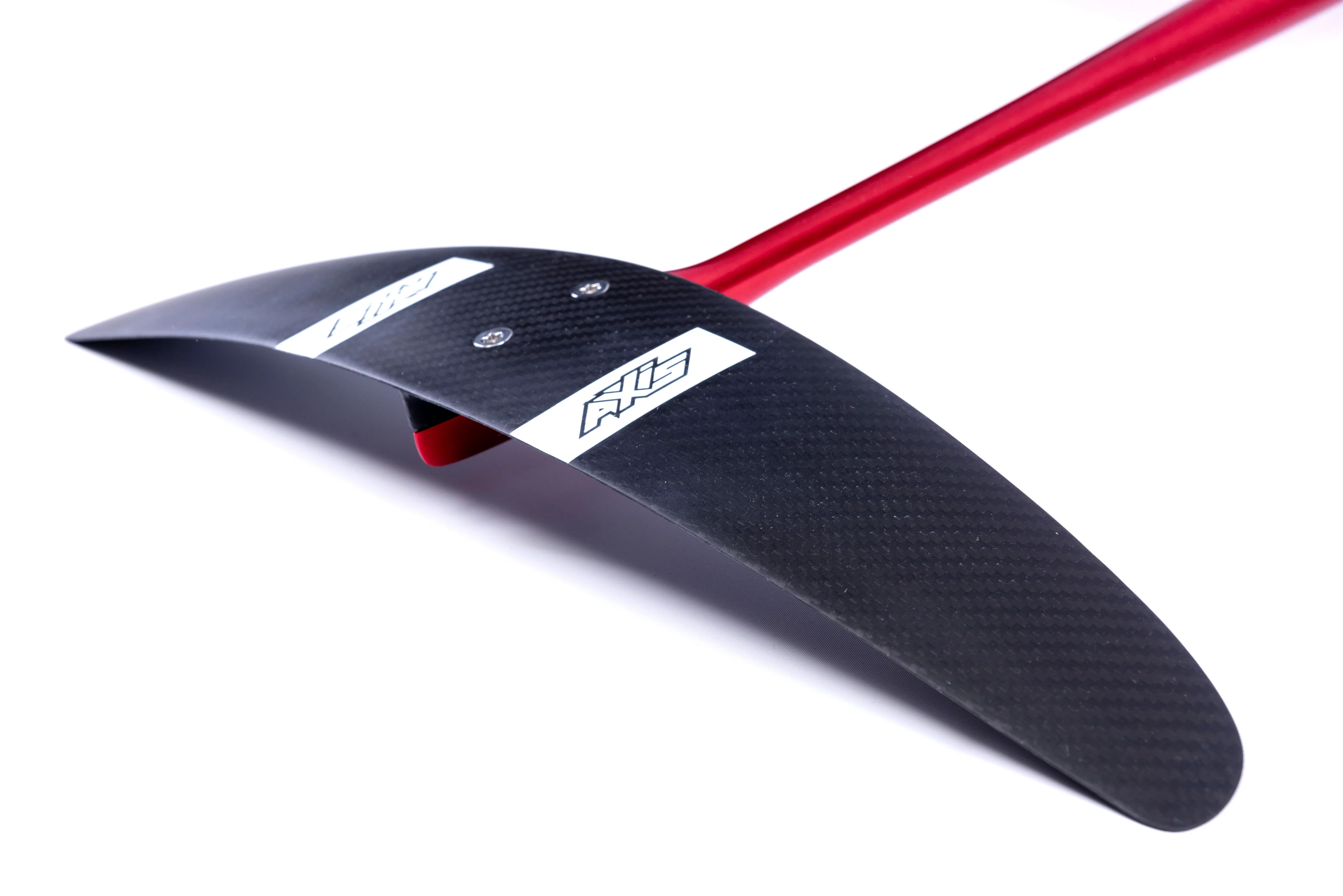

The AXIS 500 Carbon Anhedral Rear Wing, is the ideal rear wing for Wind Foiling. Combined with either the 1020, 1000, 920, 900 or 820, the 500 Anhedral gives you a balanced and stable ride while wind foiling.

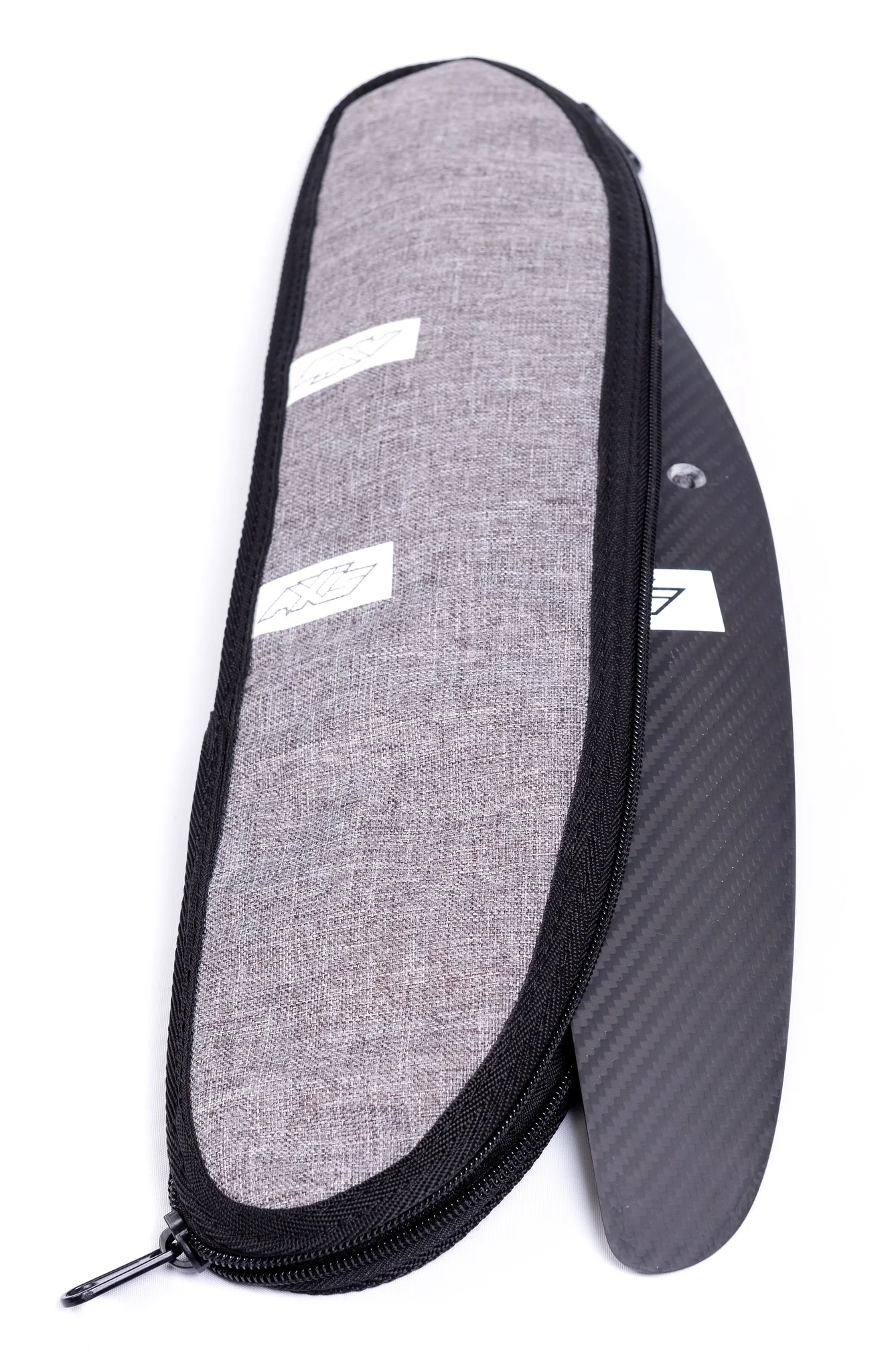

When you purchase the AXIS 500 Anhedral carbon rear wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.

WINGSPAN: 500 mm / 19.69 in

CHORD: 90 mm / 3.54 in

ASPECT RATIO: 7.17

ACTUAL AREA : 362.33 cm² / 56.16 IN²

PROJECTED AREA: 348.72 cm² / 54.05 IN²

VOLUME: 223.43 cm³ / 13.63 IN³

Assembly

What screws to mount wing to the fuselage:

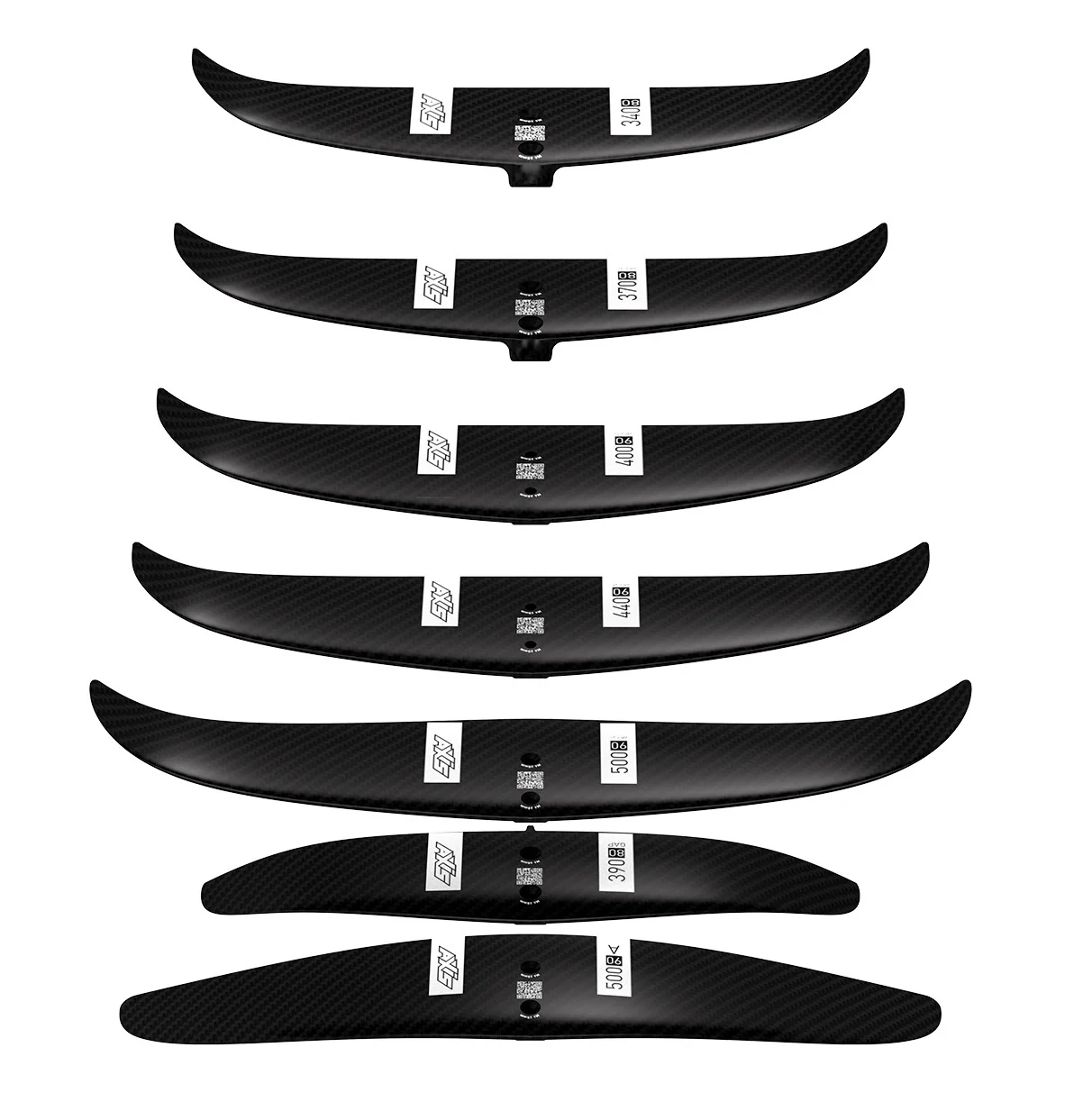

Rear Wing	Front Screw	Rear Screw
500mm x 90mm	M6 x 25mm	M6 x 25mm
440mm x 90mm	M6 x 25mm	M6 x 25mm
400mm x 90mm	M6 x 25mm	M6 x 25mm
460mm x 60mm	M6 x 22mm	M6 x 22mm
400mm x 60mm	M6 x 22mm	M6 x 22mm
420mm x 60mm	M6 x 22mm	M6 x 22mm
380mm x 60mm	M6 x 22mm	M6 x 22mm
390mm x 80mm	M6 x 25mm	M6 x 25mm
370mm x 80mm	M6 x 25mm	M6 x 25mm
340mm x 80mm	M6 x 25mm	M6 x 25mm
500mm x 90mm	M6 x 25mm	M6 x 25mm
